KubeSphere supports external authentication via LDAP and LDAPS, allowing users to log in to the KubeSphere web console using their LDAP or LDAPS username and password.

Platform administrators can configure LDAP/LDAPS authentication through a Secret.

Differences Between LDAP and LDAPS

Authentication Method Connection Method Security

LDAP

Uses plaintext transmission, default port 389

Data transmission is not encrypted, not suitable for production environments.

LDAPS

Uses SSL/TLS encrypted transmission, default port 636

Data transmission is encrypted, providing higher security, recommended for production environments.

LDAPS (SSL/TLS)

  • Port: 636, uses SSL/TLS encrypted channel, URL format: ldaps://hostname:636, similar to HTTPS, performs SSL/TLS handshake when establishing the connection.

STARTTLS

  • Port: 389 (same as regular LDAP), establishes a regular connection first, then upgrades to an encrypted connection, URL format: ldap://hostname:389, upgrades to an encrypted connection via the STARTTLS command after establishing the connection.

Steps

  1. Log in to the KubeSphere web console with a user who has the platform-admin role.

  2. Click Cluster Management and enter the host cluster.

  3. Click Configuration > Secrets in the left navigation pane.

  4. Click Create on the page.

  5. In the Create Secret dialog, click the Edit YAML toggle in the upper right corner to create the secret using YAML.

  6. Modify the YAML file according to the following example and parameter descriptions. After configuration is complete, click Create.

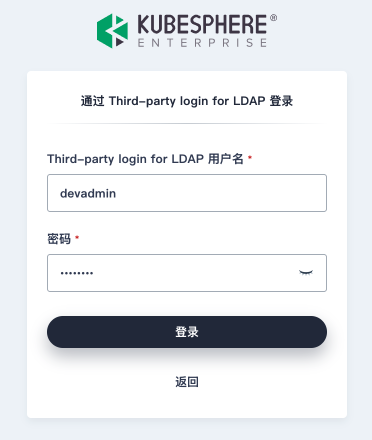

  7. Log out of the KubeSphere web console. On the login page, click Log in with LDAP, and enter your LDAP/LDAPS username and password to log in.

    ldap

Note

In a multi-cluster environment, configuration is only required in the host cluster.

LDAP Configuration

Basic LDAP Configuration

apiVersion: v1
kind: Secret
metadata:
  namespace: kubesphere-system  # Do not modify
  name: identity-provider-ldap  # Ensure this Secret name is unique within the Kubernetes cluster
  labels:
    config.kubesphere.io/type: identityprovider # Do not modify
    config.kubesphere.io/identityprovider: openldap # Must match the name field in configuration.yaml
type: config.kubesphere.io/identityprovider # Do not modify

stringData:
  configuration.yaml: |
    name: openldap
    type: LDAPIdentityProvider
    mappingMethod: auto
    hidden: false
    disabled: false
    displayName: "Third-party login for LDAP"
    provider:
      # ldap.example.com:389 When no protocol is specified, defaults to ldap protocol
      host: "ldap://ldap.example.com:389"
      managerDN: "cn=admin,dc=example,dc=com"
      managerPassword: "your-password"
      userSearchBase: "ou=Users,dc=example,dc=com"
      loginAttribute: uid
      mailAttribute: mail

Complete LDAP Configuration

The following only shows the configuration of the provider section under stringData:configuration.yaml. Other parts should remain the same as the corresponding parts in Basic LDAP Configuration.

    provider:
      # Required fields
      host: ldap.example.com:389
      managerDN: cn=admin,dc=example,dc=com
      managerPassword: "your-password"
      userSearchBase: ou=Users,dc=example,dc=com
      loginAttribute: uid
      mailAttribute: mail

      # Optional fields
      readTimeout: 15000
      startTLS: false
      insecureSkipVerify: false
      rootCA: /path/to/ca.crt
      rootCAData: "base64_encoded_cert_data"
      userSearchFilter: "(objectClass=person)"
      groupSearchBase: ou=Groups,dc=example,dc=com
      groupSearchFilter: "(objectClass=group)"
      userMemberAttribute: memberOf
      groupMemberAttribute: member
      displayNameAttribute: displayName

LDAP Parameter Description

This is the parameter description for the provider section under stringData:configuration.yaml. For parameter descriptions of other parts in the Secret, please refer to Configure External Authentication.

Parameter Type Required Default Description

host

string

Yes

-

LDAP server address and port, format: host: port.

If no port is specified, defaults to 389 (LDAP) or 636 (LDAPS)

managerDN

string

Yes

-

DN (Distinguished Name) of the administrator user

managerPassword

string

Yes

-

Password of the administrator user

userSearchBase

string

Yes

-

Base DN for user search

loginAttribute

string

Yes

-

Login attribute used to compare user entries

mailAttribute

string

Yes

-

User email attribute name

readTimeout

int

No

15000

Timeout (in milliseconds) for reading data from the remote server

startTLS

bool

No

false

Whether to use StartTLS connection. If specified, the connection will use the ldaps:// protocol

insecureSkipVerify

bool

No

false

Whether to skip TLS certificate verification

rootCA

string

No

-

Path to the trusted root certificate file. Defaults to the host’s root CA

rootCAData

string

No

-

Base64-encoded PEM format root certificate data

userSearchFilter

string

No

-

LDAP filter used to identify user objects, e.g., (objectClass=person)

groupSearchBase

string

No

-

Base DN for group search

groupSearchFilter

string

No

-

LDAP filter used to identify group objects, e.g., (objectClass=group)

userMemberAttribute

string

No

-

Attribute in the user object that stores group membership information

groupMemberAttribute

string

No

-

Attribute in the group object that stores primary group membership information

displayNameAttribute

string

No

-

Attribute name for the user’s display name

LDAPS Configuration

apiVersion: v1
kind: Secret
metadata:
  namespace: kubesphere-system  # Do not modify
  name: identity-provider-ldaps  # Ensure this Secret name is unique within the Kubernetes cluster
  labels:
    config.kubesphere.io/type: identityprovider # Do not modify
    config.kubesphere.io/identityprovider: openldap # Must match the name field in configuration.yaml
type: config.kubesphere.io/identityprovider # Do not modify

stringData:
  configuration.yaml: |
    name: openldap
    type: LDAPIdentityProvider
    mappingMethod: auto
    hidden: false
    disabled: false
    displayName: "Third-party login for LDAP"
    provider:
      host: "ldaps://ldaps.example.com:636"
      managerDN: "cn=admin,dc=example,dc=com"
      managerPassword: "your-password"
      userSearchBase: "ou=Users,dc=example,dc=com"
      loginAttribute: uid
      mailAttribute: mail
      startTLS: false  # Set to false when using LDAPS
      insecureSkipVerify: false  # Recommended to set to false in production environments
      # If you need to specify a CA certificate, you can add one of the following configurations
      rootCA: <ca-file>
      rootCAData: <ca-data>

LDAPS-Specific Configuration Parameter Description

Parameter Description

startTLS

  • false: Use LDAPS (SSL/TLS) connection

  • true: Use STARTTLS method for encrypted connection

insecureSkipVerify

  • false: Verify server certificate (recommended)

  • true: Skip server certificate verification (for testing environments only)

rootCA

Path to the LDAP server’s CA certificate (optional)

rootCAData

Content of the LDAP server’s CA certificate (optional)

STARTTLS Configuration

apiVersion: v1
kind: Secret
metadata:
  namespace: kubesphere-system  # Do not modify
  name: identity-provider-ldaps  # Ensure this Secret name is unique within the Kubernetes cluster
  labels:
    config.kubesphere.io/type: identityprovider # Do not modify
    config.kubesphere.io/identityprovider: openldap # Must match the name field in configuration.yaml
type: config.kubesphere.io/identityprovider # Do not modify

stringData:
  configuration.yaml: |
    name: openldap
    type: LDAPIdentityProvider
    mappingMethod: auto
    hidden: false
    disabled: false
    displayName: "Third-party login for LDAP"
    provider:
      # ldap.example.com:389 When no protocol is specified, defaults to ldap protocol
      host: "ldap://ldaps.example.com:389"
      managerDN: "cn=admin,dc=example,dc=com"
      managerPassword: "your-password"
      userSearchBase: "ou=Users,dc=example,dc=com"
      loginAttribute: uid
      mailAttribute: mail
      startTLS: true  # Set to true
      insecureSkipVerify: false  # Recommended to set to false in production environments
      # If you need to specify a CA certificate, you can add one of the following configurations
      rootCA: <ca-file>
      rootCAData: <ca-data>

Configuration Differences: LDAP/LDAPS/STARTTLS

Protocol host Protocol startTLS insecureSkipVerify

ldap

ldap

false

-

ldaps

ldaps

true/false

true/false

starttls

ldap

true

true/false
